Understanding SPCC and SPHC Steel
Table of Contents
What is SPCC Steel?

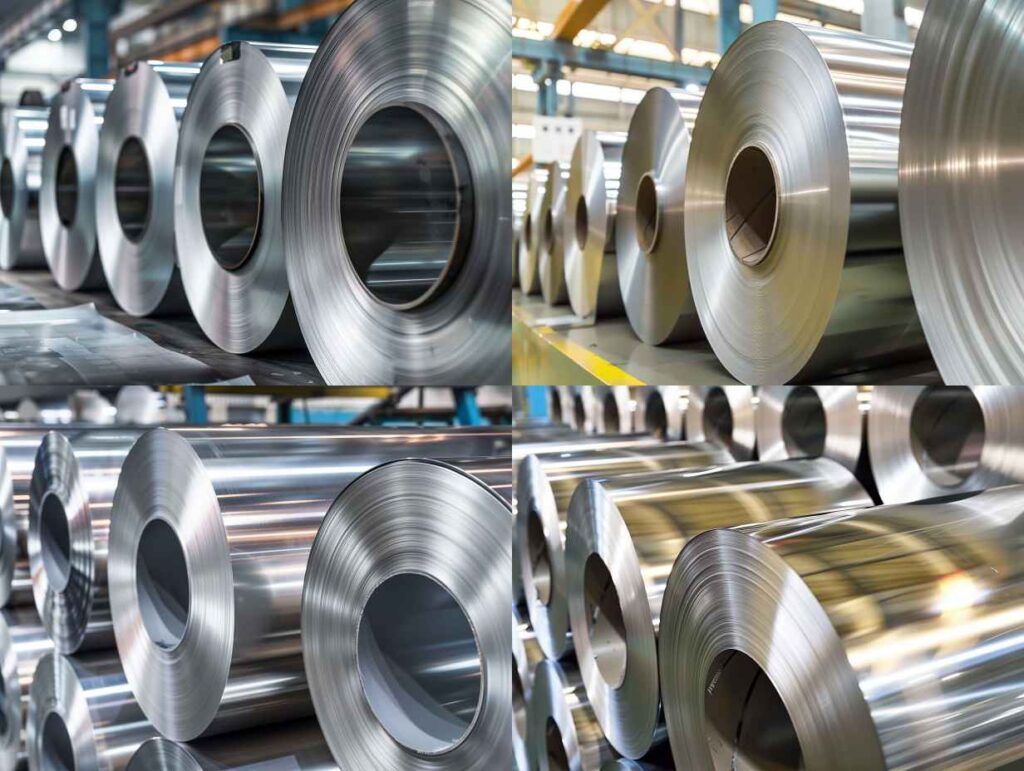

SPCC Steel Plate
SPCC steel plates are a fundamental form of this versatile material, widely used in various manufacturing processes. These plates come in different thicknesses and dimensions, catering to diverse industrial needs. Here are some key points about SPCC steel plates:
• They are produced through a cold rolling process, which enhances their surface finish and dimensional accuracy.
• SPCC steel plates offer excellent flatness, making them suitable for applications requiring precise measurements.
• The plates can be easily cut, bent, and formed into various shapes, thanks to their high formability.
• They are often used as base materials for products that require painting or coating, due to their smooth surface.
Types of Rolled Steel Sheets
SPCC is one of several types of rolled steel sheets, each designed to meet specific industrial requirements. The rolling process, whether hot or cold, significantly influences the properties of the final product. Here’s an overview of the main types:
Cold Rolled Steel Sheets (including SPCC):
• Produced at room temperature
• Offer better surface finish and dimensional accuracy
• Typically harder and stronger than hot rolled sheetsHot Rolled Steel Sheets:
• Processed at high temperatures
• More suitable for applications where precise tolerances are not critical
• Generally less expensive than cold rolled sheetsGalvanized Steel Sheets:
• Coated with a layer of zinc for corrosion resistance
• Can be either hot-dipped or electro-galvanizedStainless Steel Sheets:
• Contain chromium for enhanced corrosion resistance
• Available in various grades for different applications
SPCC Steel Specifications
SPCC steel adheres to specific standards and specifications, ensuring high-quality and consistent performance across different manufacturing processes. These specifications are crucial for maintaining uniformity and reliability in industrial applications. Key aspects of SPCC steel specifications include:
• Material Standard: SPCC typically conforms to JIS G3141 standard, which is a Japanese Industrial Standard for cold-reduced carbon steel sheets and strips.
• Thickness Range: Generally available in thicknesses ranging from 0.2mm to 3.2mm, catering to various application needs.
• Width: Can be produced in widths up to 1250mm, allowing for versatility in manufacturing processes.
• Surface Finish: Specifications often include details about the surface finish, which can range from matte to bright, depending on the intended use.
• Mechanical Properties:
- Tensile Strength: Usually between 270-370 MPa
- Yield Strength: Typically around 140-240 MPa
- Elongation: Often specified at 36% minimum
• Chemical Composition: Strict limits on elements like carbon, manganese, phosphorus, and sulfur are specified to ensure consistent properties.
SPCC Steel Equivalents
SPCC steel is equivalent to several other materials, making it a versatile choice in various industries. Understanding these equivalents can help manufacturers and engineers make informed decisions when selecting materials for their projects. Here are some notable equivalents:
International equivalents:
• ASTM A1008 CS Type B (USA)
• EN 10130 DC01 (Europe)
• GB/T 11253 DC01 (China)Grade equivalents:
• SAE 1008
• DIN 1623 St12Similar materials with slight variations:
• SPCD: A slightly more formable variant
• SPCE: Offers enhanced drawing properties
SPCC Steel Composition
The chemical composition of SPCC steel is crucial to its unique properties and performance characteristics. This carefully controlled mix of elements contributes to the steel’s formability, strength, and other desirable traits. Here’s a breakdown of the typical chemical composition of SPCC steel:
• Carbon (C): ≤ 0.12%
- Low carbon content contributes to the steel’s excellent formability
• Manganese (Mn): ≤ 0.50%
- Helps in deoxidation and enhances strength
• Phosphorus (P): ≤ 0.040%
- Kept low to avoid brittleness
• Sulfur (S): ≤ 0.045%
- Also kept low to maintain ductility
• Silicon (Si): Not specified, but typically very low
It’s worth noting that the exact percentages can vary slightly depending on the specific standard or manufacturer. The balance of the composition is primarily iron (Fe).
This precise composition is what gives SPCC steel its characteristic properties:
- The low carbon content ensures good formability and weldability.
- Controlled amounts of manganese contribute to strength without compromising ductility.
- Limiting phosphorus and sulfur helps maintain the steel’s ductility and formability.
SPCC Mechanical Properties
SPCC steel boasts mechanical properties that make it suitable for a wide range of applications. These properties are a direct result of its chemical composition and manufacturing process. Here’s an overview of the key mechanical properties of SPCC steel:
Tensile Strength:
• Typically ranges from 270 to 370 MPa
• Provides sufficient strength for many applications while maintaining formabilityYield Strength:
• Usually between 140 to 240 MPa
• Indicates the stress at which the material begins to deform plasticallyElongation:
• Minimum of 36% (in a 50mm gauge length)
• High elongation indicates excellent ductility and formabilityHardness:
• Approximately 65 to 75 HRB (Rockwell B scale)
• Relatively low hardness contributes to its good machinabilityYoung’s Modulus:
• Around 200 GPa, typical for most steels
• Indicates the material’s stiffness
Features of SPCC Steel
SPCC Mechanical Properties
Smooth Surface
Susceptibility to Oxidation and Rust
Applications of SPCC Metal
Differences Between SPCC and SPHC Steel
While both SPCC and SPHC are types of steel used in various industries, they have distinct characteristics that make them suitable for different applications. Understanding these differences is crucial for selecting the right material for specific projects.
Manufacturing Process:
• SPCC: Cold-rolled steel
• SPHC: Hot-rolled steelSurface Finish:
• SPCC: Smoother surface due to cold rolling
• SPHC: Rougher surface, often with mill scaleDimensional Accuracy:
• SPCC: Higher dimensional accuracy and tighter tolerances
• SPHC: Less precise dimensions due to the hot rolling processFormability:
• SPCC: Excellent formability, suitable for complex shapes
• SPHC: Good formability, but less than SPCCStrength:
• SPCC: Generally higher yield and tensile strength due to work hardening
• SPHC: Lower strength, but more ductileTypical Applications:
• SPCC: Used in applications requiring good surface finish and formability
• SPHC: Often used in structural applications or where surface finish is less criticalCost:
• SPCC: Generally more expensive due to additional processing
• SPHC: Usually less expensive, making it cost-effective for certain applications
What is SPHC Steel?
SPHC steel is a hot-rolled, low-carbon steel that is commonly used in applications requiring low tensile strength and high ductility. Here are the key points about SPHC steel:
Manufacturing Process:
• Produced through hot rolling at temperatures above the recrystallization temperature of steel
• This process results in a material with uniform properties throughoutChemical Composition:
• Carbon (C): ≤ 0.15%
• Manganese (Mn): ≤ 0.60%
• Phosphorus (P): ≤ 0.050%
• Sulfur (S): ≤ 0.050%Mechanical Properties:
• Tensile Strength: 270-410 MPa
• Yield Strength: ≥ 170 MPa
• Elongation: ≥ 28%Key Features:
• High ductility and formability
• Good weldability due to low carbon content
• Cost-effective compared to cold-rolled steels
• Suitable for applications where surface finish is not criticalTypical Applications:
• Construction materials (e.g., beams, channels)
• Automotive frame components
• Agricultural equipment
• General fabrication and manufacturingStandards:
• Conforms to JIS G3131 standard
• Equivalent to ASTM A1011 SS Grade 36 (US) and EN 10025-2 S235JR (Europe)
SPHC and SPCC: Usage and Applications
Both SPHC and SPCC steels have their unique properties that make them suitable for different applications. Understanding their typical uses can help in selecting the right material for specific projects.
SPHC Steel Applications:
Construction Industry:
• Structural components like beams and channels
• Roofing and siding materials
• Scaffolding and temporary structuresAutomotive Sector:
• Frame components
• Non-visible body parts
• Chassis componentsIndustrial Equipment:
• Heavy machinery parts
• Storage tanks
• Conveyor systemsAgriculture:
• Farm equipment and machinery
• Storage silos
• Fencing materials
SPCC Steel Applications:
Automotive Industry:
• Body panels
• Interior components
• Fuel tanksConsumer Electronics:
• Computer and smartphone casings
• Home appliance exteriors
• TV and monitor framesHome Appliances:
• Refrigerator and washing machine bodies
• Small kitchen appliance housings
• HVAC system componentsOffice Equipment:
• Filing cabinets
• Desk and chair frames
• Printer and copier casings
